ABB AUXILIARY CONTACT (CA)

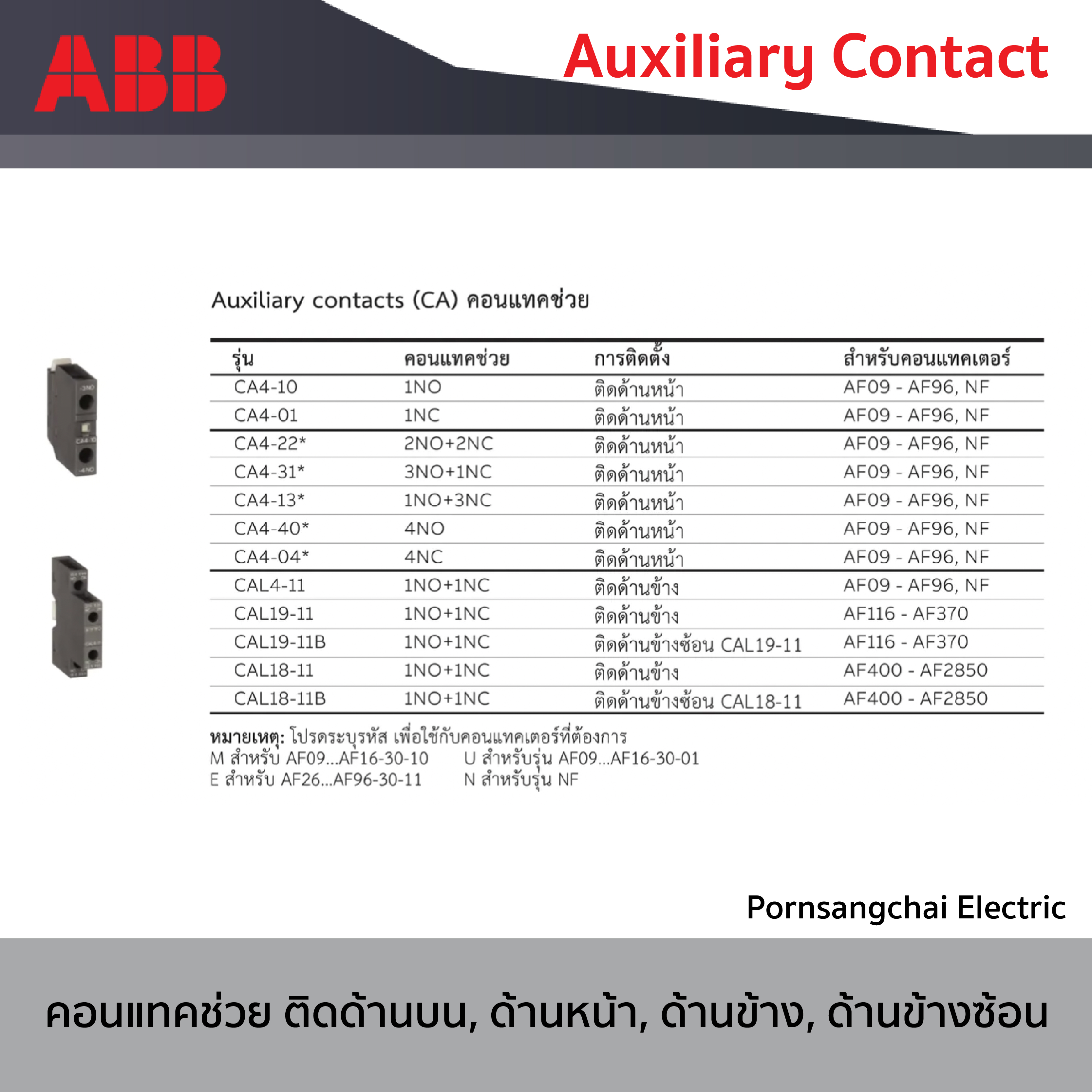

Auxiliary contacts (CA) คอนแทคช่วย

คอนแทคช่วยมีการออกแบบพิเศษ

Micro contacts คอนแทคช่วย (NC) และเมนคอนแทค (NO)

จะไม่อยู่ในตำแหน่งปิดพร้อมกัน ทำให้ปลอดภัยในการใช้งาน

The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard industrial environments.

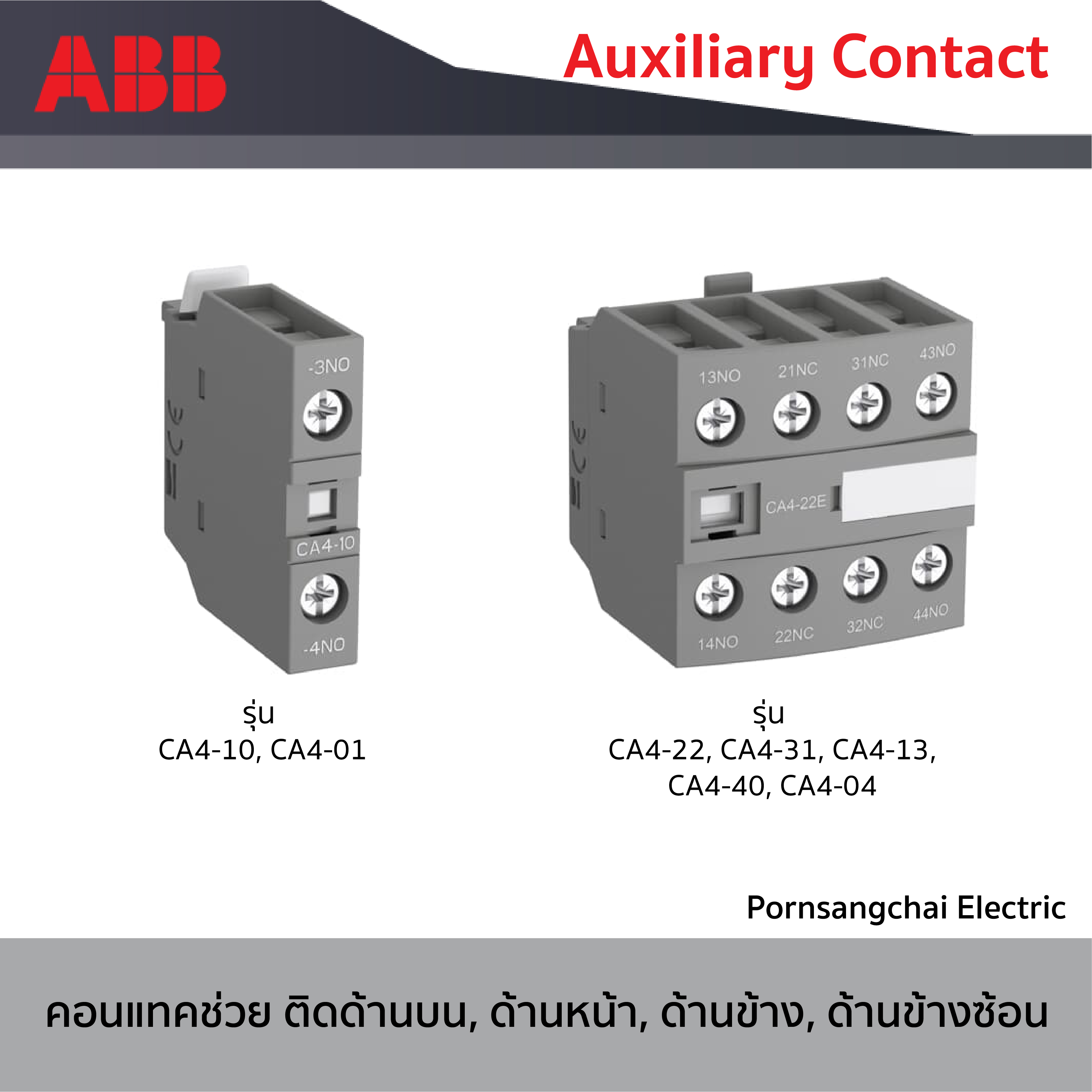

Types of auxiliary contact blocks for front mounting:

• CA4 1 or 4-pole block, with instantaneous N.O., N.C. contacts
• CC4 1-pole block, with N.O. leading contact or N.C. lagging contact
• CAT4 2-pole block, with instantaneous N.O. + N.C. contacts and A1 / A2 coil terminal connection on front face.

Select the 4-pole auxiliary contact blocks CA4-..E, CA4-..M, CA4-..U or CA4-..N type, according to the contactor or contactor relay type for compliance with the standard requirements (see "Terminal marking and positioning").

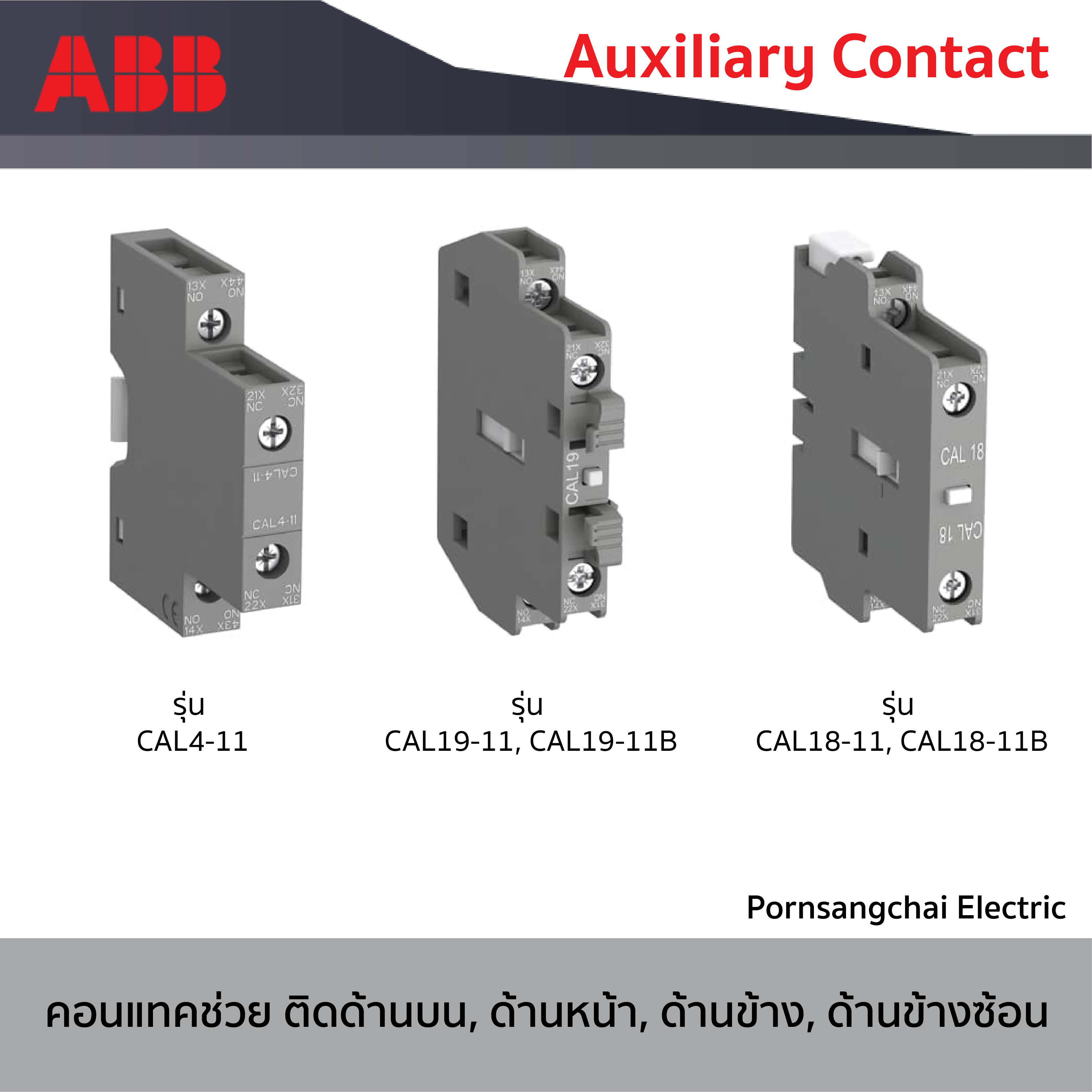

Types of auxiliary contact blocks for side mounting:

• CAL4 2-pole block, with instantaneous N.O. + N.C. contacts.

For clipping onto the right- and/or left-hand side of the contactors. The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected against accidental direct contact and bear the corresponding function marking.
